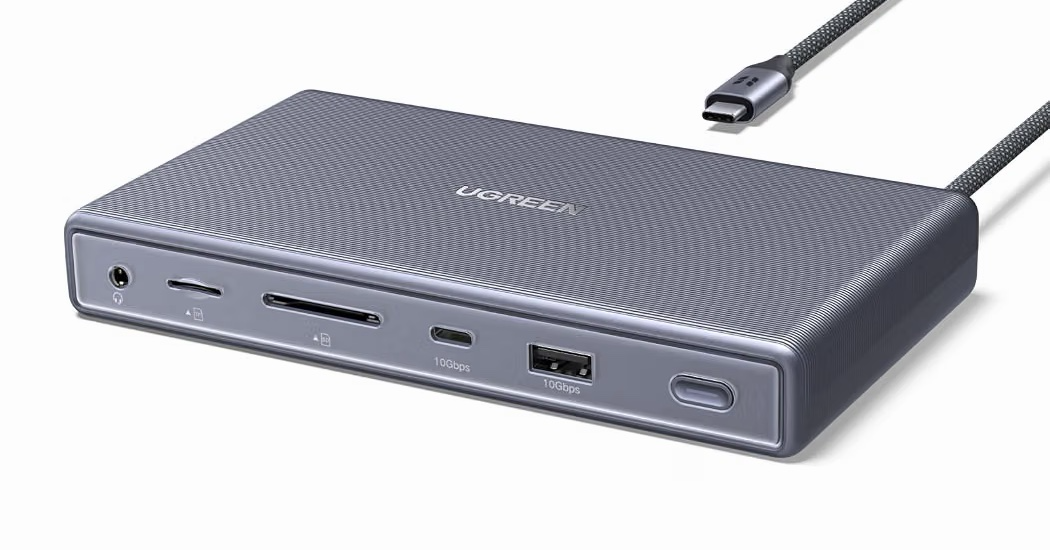

Thin laptops look nice until you need to connect a monitor, memory card, wired network, and external storage at the same time. UGREEN’s 11-in-1 USB4 dock offers connections for all of those, and it is on sale for $99 (normally $150) through Amazon’s Prime Big Deal Days promotion. There is a catch, though: the power adapter needed to get its maximum laptop charging output costs extra. Yeah, really.
The dock uses silicon from Parade Technologies, which announced that UGREEN selected its PS9010 USB4 dock controller and PS5513 dual-port USB Power Delivery controller. Those chips handle the mix of data, display traffic, and charging that makes this kind of accessory useful.

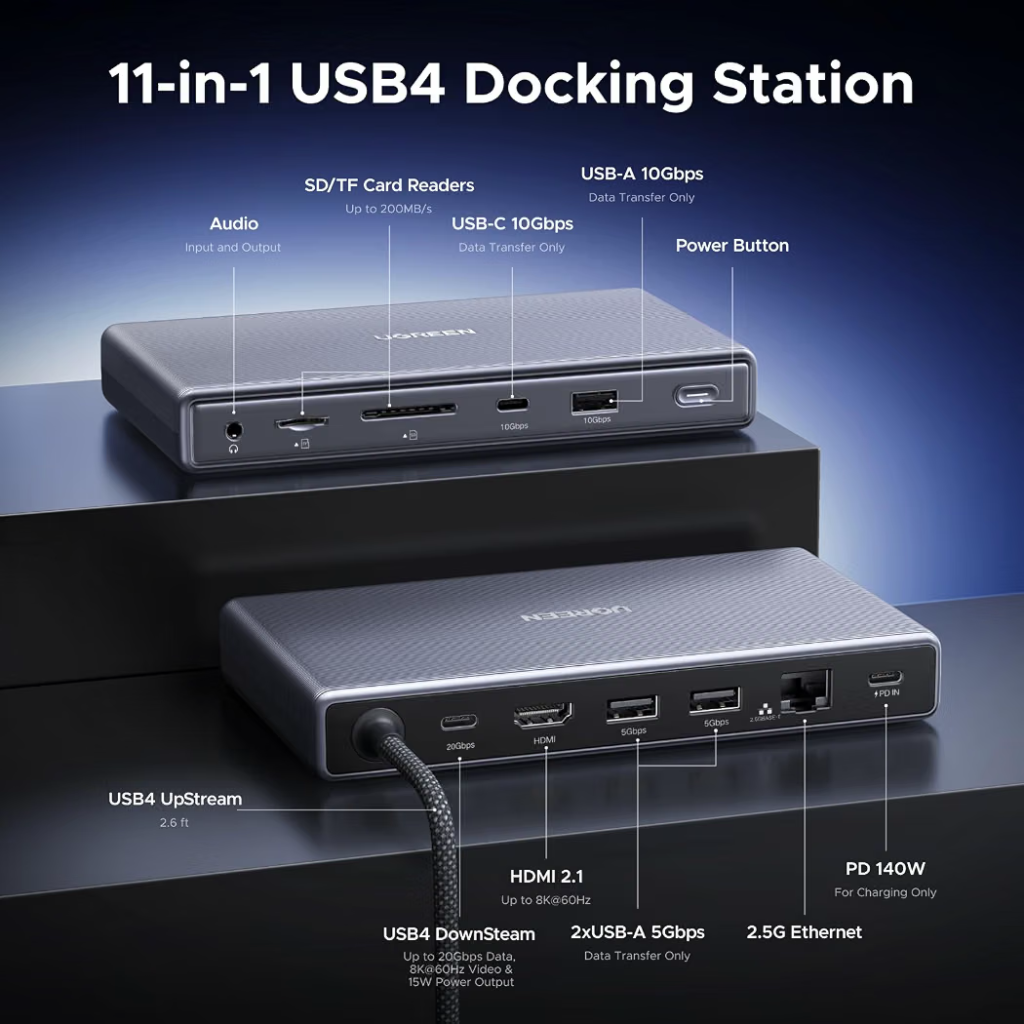

UGREEN includes a downstream USB4 port, HDMI, 2.5Gb Ethernet, one 10Gbps USB-A port, one 10Gbps USB-C port, and two 5Gbps USB-A ports. You also get SD and microSD card readers supporting speeds up to 200MB/s, plus a 3.5mm headset jack.
For people who regularly move between a laptop and a desk setup, that selection could cover quite a few needs. The card readers handle camera media, the USB ports accommodate storage and accessories, and Ethernet provides a wired alternative to Wi-Fi.
The host connection supports up to 40Gbps of shared USB4 bandwidth, while the downstream USB4 port supports data transfers up to 20Gbps. That difference is worth understanding before buying. A 40Gbps connection to your computer does not mean an external drive connected to the downstream port gets the same maximum speed.
Parade’s PS9010 manages the dock’s data and display streams, with its native DisplayPort interface feeding the HDMI output through a protocol converter. The USB peripherals, Ethernet, and card readers connect through an onboard hub using a shared USB 3.2 10Gbps link. Those devices can compete for bandwidth during simultaneous transfers, and actual speeds also depend on your computer, cables, and storage.
Display support looks promising on paper. UGREEN lists support for a single 4K display at up to 240Hz or dual 4K displays at up to 120Hz. It also specifies video output up to 8K at 60Hz through the downstream USB4 port and includes a USB-C to DisplayPort cable.
However, buyers should check their particular computer and monitors before assuming those modes will work. UGREEN says available display configurations depend on the host device, operating system, cable, and monitor. Its compatibility information specifically references compatible macOS computers, so Mac owners should confirm support for their exact model rather than treating dual-display output as a universal promise.
Charging comes with its own requirements. The dock can deliver up to 115W to a laptop when paired with a compatible 140W PD 3.1 power adapter (such as this one), which is sold separately. The downstream USB4 port can supply up to 15W to compatible peripherals.
Parade’s PS5513 handles USB-C port detection, protocol negotiation, and power delivery profiles. If you already own a suitable adapter, the arrangement may be convenient. If you do not, the $99 sale price does not represent the full cost of getting the advertised maximum charging output.
A power button adds a practical touch. Pressing it disconnects or reconnects data, video, and peripheral functions while laptop charging stays active. That could be handy when you want to disconnect your desk accessories without interrupting power to the computer.
Parade also says the PS9010’s low-power design allows UGREEN to build a fanless enclosure without dedicated heatsinks. That helps explain the hardware design, although it does not establish how warm the finished dock gets during sustained use or how well it performs with every port occupied.
The UGREEN 11-in-1 USB4 dock is available on Amazon for $99 during the promotion. Its port selection makes it worth considering for a compatible workstation, but check the display requirements and factor in a power adapter if you need one. The price is appealing only if the dock delivers the connections your particular setup can actually use.
